Note:
If your iVOLT BAB-50 has a raised lip around the input port, it will not work with the ACC hardwiring kits or cigarette lighter adapters from the Battery Pack Replacement Cables listing.

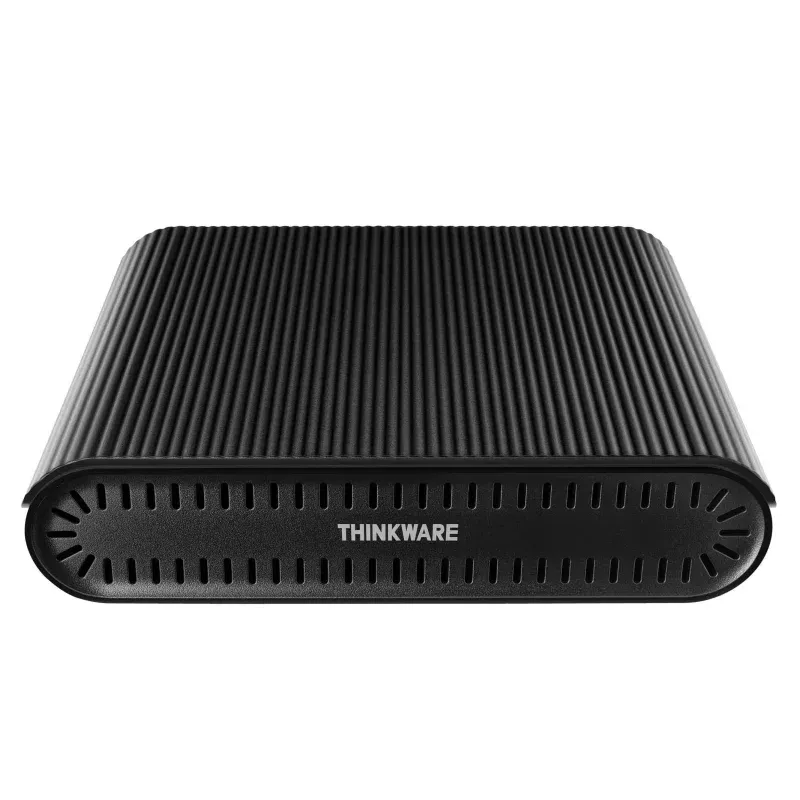

Thinkware iVOLT BAB-50 Battery Pack
Designed for Thinkware Dash Cams, the BAB-50 is an excellent solution to enhancing the parking mode features of the dash cam and eliminate wear and tear on the vehicles battery. When your vehicle is powered off, the BAB-50 will provide power to your dash cam for parking mode recording.
The BAB-50 is compact-sized, making it easy to hide inside the vehicle, especially in smaller vehicles. The BAB-50 takes approximately 45 minutes to fully charge (7A Speed Charge) and can power a dual-channel dash cam system up to 16 hours.
Made up of LiFePo4 (Lithium Iron Phosphate) cells, the BAB-50 is designed to withstand extreme temperatures, go through more charge cycles (up to 1,500 charge cycles) and is more environmentally-friendly than traditional Lithium-ion batteries.
Without a battery pack, some vehicles may bring up a Battery Discharge warning if you leave your dash cam running in Parking Surveillance Mode for several hours as it is detected as an excessive vehicle battery drain. Fitting a battery pack is the best solution to prevent it from happening.
{“__shgImageElements”: { “uuid”: “s-1b65d6e9-677d-43c2-9ead-b925c6e7bbc8” } }
What’s Included
- Thinkware iVolt Mini Battery Pack
- Power Input Hardwire Cable
- Unspliced output cable (requires dashcam hardwire cable)
- Add-A-Fuses for battery packs (ATO, Micro2, Mini)
- Velcro Tape
- Quick Start Guide
- 1-Year Warranty
Specifications
Input Power
12.0V15.5V / 10A MAX
Output Voltage / Current
12.0V14.6V / 2.0A MAX
Charging Voltage / Current
14.6V / 7A (Hardwire)14.6V / 5A (Plug & Play)
Charging Time
About 45 minutes (Hardwire)About 60 minutes (Cigarette Plug)
Usage Time
1-Channel: Up to 20 hours (2.9Wh)2-Channel: Up to 16 hours (3.5Wh)
Battery
LiFePo4 (Lithium iron phosphate)
Battery Capacity
12.8V 4,500mAh 57.6Wh
Charge Cycles
up to 1,500 charge cycles
Dimensions
165.4(W) x 131.2(L) x 36.8(H)
Weight
0.95kg
Operating Temperature
Charging: 0C~45CDischarging: -10C~60C
Storage Temperature
-10C ~ 60C
Storage Humidity Range
65% 20%RH
Warranty
1-Year Warranty
Notes
12V Cigarette Charging Cable is not included. The iVOLT BAB-50 must be hardwired to the fusebox.
Thinkware Hardwire Kit is required for the Unspliced 3-Wire Output Cable option. We strongly recommend soldering the wires for a secure connection between the Thinkware Hardwire Kit and the Unspliced 3-Wire Output Cable. For a plug and play experience, choose the Spliced Hardwire Kit.
Resources
- Installing with a Battery Pack
- Do I need a battery expansion pack?
